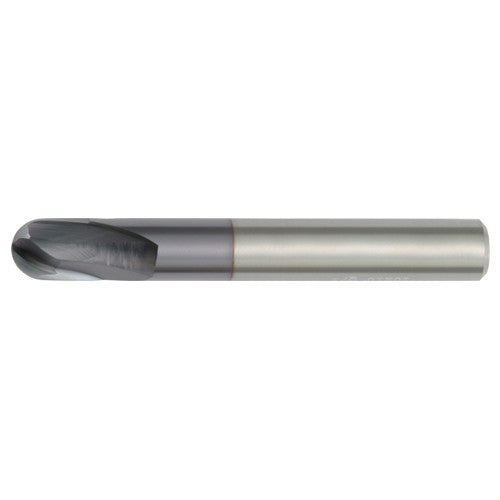

6 mm Dia. × 6 mm Shank × 6 mm DOC × 50 mm OAL, Carbide TiAlN, 2 Flute, CW|15° Helix, Round, Ballnose End Mill
Item #: WK401860112
Brand: Widia
Model #: 1860112
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 6 mm |
| Corner Radius (RE) | 3 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Grade | WU10PE |
| Depth of Cut Maximum (APMX) | 6 mm |
| End Shape | Ball Nose |
| Overall Length (OAL) | 50 mm |
| Coolant Supply Property (CSP) | External |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.2362″ |
| Coating | AlTiN |
| Measurement Type | Metric |
| Flute Count (NOF) | 2 |
| Series/List # | 7151 | Vision Plus |
| Shank Type | Straight | Cylindrical |
| Shank Length (LS) | 38 mm |
| Usable Length (LU) | 6 mm |
| Cutting Direction (HAND) | Right Hand |
| Applicable Material | Steel | Hard Materials |
| Center Cutting | Yes |
| Application | Finishing |
| Single / Double End | Single End |
