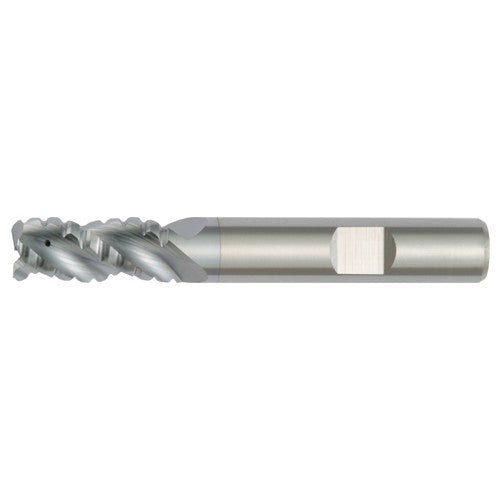

SC RUF 3FL 12X12X26X83R0.5
Item #: WK401859876
Brand: Widia
Model #: 1859876
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 12 mm |
| End Shape | Chamfer |
| Connection Diameter Machine Side (DCONMS) | 12 mm |
| Usable Length (LU) | 26 mm |
| Depth of Cut Maximum (APMX) | 26 mm |
| Corner Radius (RE) | 0.5 mm |
| Overall Length (OAL) | 83 mm |
| Corner Chamfer Width (CHW) | 0.35 mm |
| Cutting Edge Material | Carbide |
| Grade | TICN-CT |
| Coating | TiCN |
| Flute Type | Chamfered Pitch |
| Flute Count (NOF) | 3 |
| Coolant Supply Property (CSP) | Coolant Thru |
| Flute Helix Angle (FHA) | CW|40 Degrees |
| Style | 82-02 SEM Side and Center |
| Shank Type | Round |
| Decimal Equivalent | 0.4724″ |
