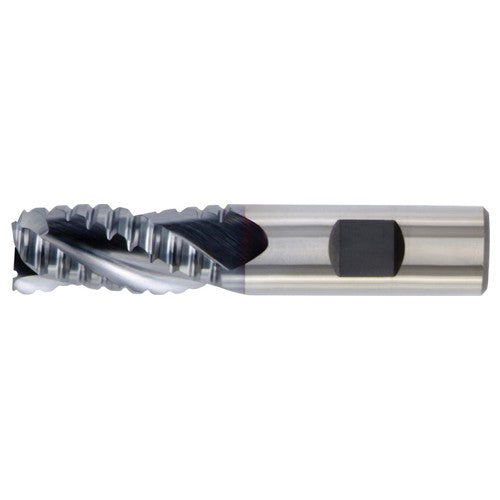

1X1X3X5.1/2 PM RUF 3FL
Item #: WK401839782
Brand: Widia
Model #: 1839782
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1″ |
| Shank Type | Weldon |
| Connection Diameter Machine Side (DCONMS) | 1″ |
| End Shape | Chamfer |
| Depth of Cut Maximum (APMX) | 3″ |
| Usable Length (LU) | 3″ |
| Overall Length (OAL) | 5-1/2″ |
| Corner Chamfer Width (CHW) | 0.02″ |
| Cutting Edge Material | HSSPM |
| Flute Type | Chamfered Pitch |
| Coating | TiCN |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 |
| Style | 82-02 SEM Side and Center |
| Flute Helix Angle (FHA) | CW|30 Degrees |
| Decimal Equivalent | 1″ |
