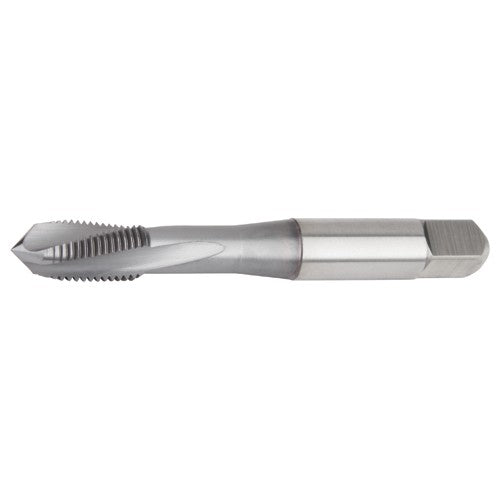

GT905028-1/4-20 H3 3FL LH SF PLUGHS
Item #: WK345705584
Brand: Widia
Model #: 5705584
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 1/4″ |
| Thread Tolerance Class (TCTR) | H3 |
| Threads per Inch (TPI) | 20 |
| Standard | ANSI |
| Thread Standard | NC |
| Tool Type | High Performance Tap|Hand Tap |
| Overall Length (OAL) | 2.51″ |
| Chamfer | 3P-5P |
| Thread Cutting Part Length (THL) | 0.44″ |
| Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 0.255″ |
| Style | Plug |
| Flute Count (NOF) | 3 |
| Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 15 Degrees|CCW |
| Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSSCoPM |
| Measurement Type | Fractional |
