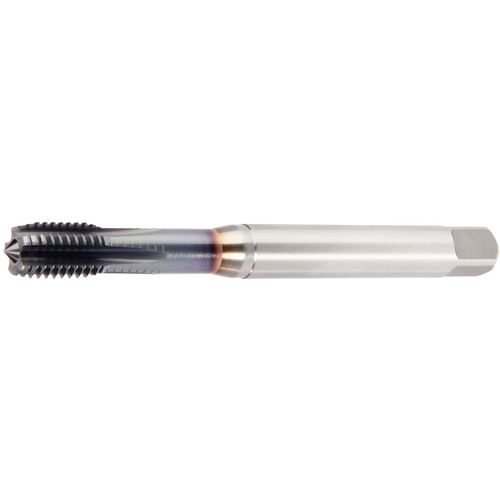

GT065008 M12X1.5 6HX STFL 374
Item #: WK344159920
Brand: Widia
Model #: 4159920
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M12 |
| Standard | DIN 374 |
| Thread Pitch (TP) | 1.5 mm |
| Flute Type | Straight |
| Thread Standard | Metric |
| Style | Plug |
| Overall Length (OAL) | 100 mm |
| Shank Type | Round w/ Drive Square |
| Thread Cutting Part Length (THL) | 15 mm |
| Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 9 mm |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 5 |
| Square Size | 7 mm |
| Flute Helix Angle (FHA) | 0 Degrees |
| Measurement Type | Metric |
| Applicable Material | Hard Materials |
| Grade | WS32MG |
| Cutting Edge Material | HSS-E-PM |
| Series/List # | GT06 |
| Thread Tolerance Class (TCTR) | 6HX |
| Thread Size | M12 × 1.5 |
