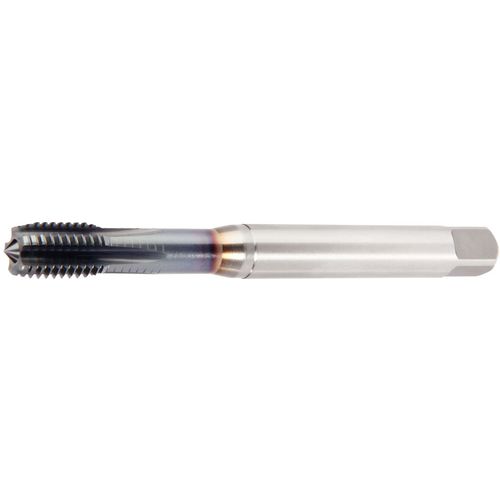

GT065006 M8X1 6HX STFL 374
Item #: WK344159918
Brand: Widia
Model #: 4159918
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M8 |
| Standard | DIN 374 |
| Thread Pitch (TP) | 1 mm |
| Flute Type | Straight |
| Thread Standard | Metric |
| Style | Plug |
| Overall Length (OAL) | 90 mm |
| Shank Type | Round w/ Drive Square |
| Thread Cutting Part Length (THL) | 10 mm |
| Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 35 mm |
| Coolant Supply Property (CSP) | External |
| Connection Diameter Machine Side (DCONMS) | 8 mm |
| Square Size | 6.2 mm |
| Flute Count (NOF) | 5 |
| Measurement Type | Metric |
| Flute Helix Angle (FHA) | 0 Degrees |
| Grade | WS32MG |
| Applicable Material | Hard Materials |
| Series/List # | GT06 |
| Cutting Edge Material | HSS-E-PM |
| Thread Size | M8 × 1 |
| Thread Tolerance Class (TCTR) | 6HX |
