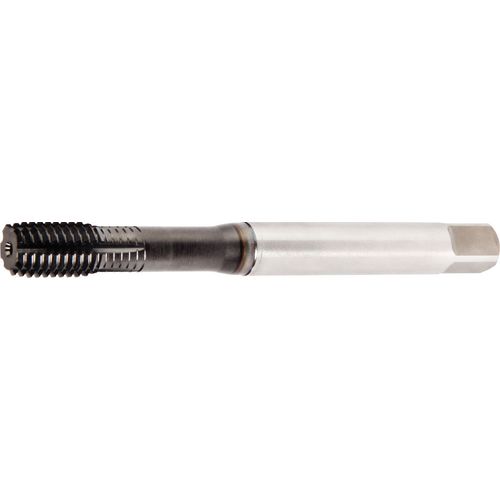

GT235005 M12X1.75 6HX FT SBOT CH376
Item #: WK344159647
Brand: Widia
Model #: 4159647
| Product Specifications | |
|---|---|
| Tool Type | Forming Tap |
| Coolant Supply Property (CSP) | Coolant Thru |
| Thread Diameter Size (TDZ) | M12 |
| Square Size | 7 mm |
| Thread Pitch (TP) | 1.75 mm |
| Measurement Type | Metric |
| Overall Length (OAL) | 110 mm |
| Style | Semi-Bottoming |
| Thread Cutting Part Length (THL) | 18 mm |
| Cutting Edge Material | HSSE-PM |
| Connection Diameter Machine Side (DCONMS) | 9 mm |
| Cutting Direction (HAND) | Right Hand |
| Thread Tolerance Class (TCTR) | 6HX |
| Series/List # | GT |
| Tap Standard | DIN 2174 |
| Shank Type | Round w/ Drive Square |
| Thread Standard | Metric |
| Grade | WN38MG |
| Applicable Material | Aluminum / Non-Ferrous Materials |
| Thread Size | M12 × 1.75 |
