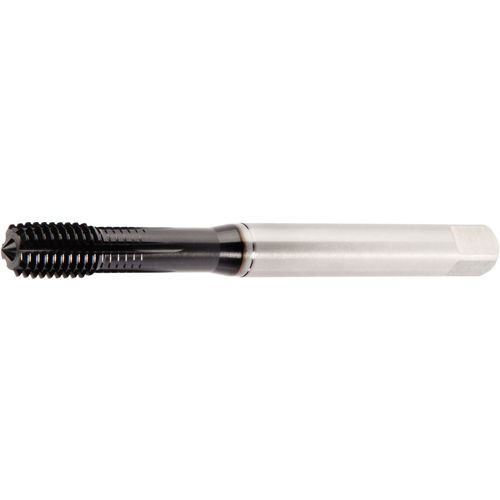

GT225023 M16X2 6HX FT SBOT 2174
Item #: WK344158502
Brand: Widia
Model #: 4158502
| Product Specifications | |
|---|---|
| Tool Type | Forming Tap |
| Coolant Supply Property (CSP) | External |
| Thread Diameter Size (TDZ) | M16 |
| Chamfer | 2P-3P |
| Thread Pitch (TP) | 2 mm |
| Square Size | 9 mm |
| Overall Length (OAL) | 110 mm |
| Measurement Type | Metric |
| Thread Cutting Part Length (THL) | 22 mm |
| Style | Semi-Bottoming |
| Connection Diameter Machine Side (DCONMS) | 12 mm |
| Cutting Edge Material | HSSCoPM |
| Thread Tolerance Class (TCTR) | 6HX |
| Cutting Direction (HAND) | Neutral |
| Tap Standard | DIN 2174 |
| Shank Type | Round w/ Drive Square |
| Thread Standard | Metric |
| Thread Size | M16 × 2 |
