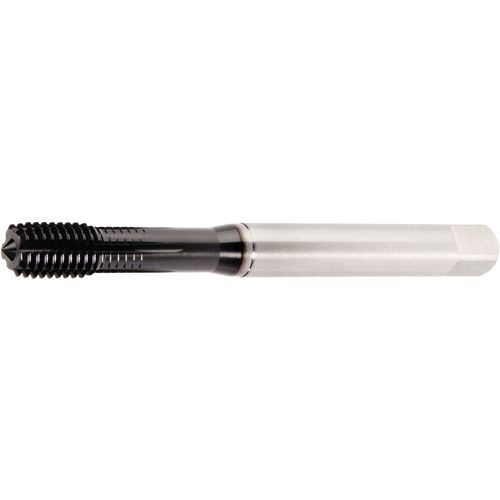

GT225016 M3X0.5 6HX FT SBOT 2174
Item #: WK344158495
Brand: Widia
Model #: 4158495
| Product Specifications | |
|---|---|
| Tool Type | Forming Tap |
| Coolant Supply Property (CSP) | External |
| Thread Diameter Size (TDZ) | M3 |
| Chamfer | 2P-3P |
| Thread Pitch (TP) | 0.5 mm |
| Square Size | 2.7 mm |
| Overall Length (OAL) | 56 mm |
| Measurement Type | Metric |
| Thread Cutting Part Length (THL) | 6 mm |
| Style | Semi-Bottoming |
| Connection Diameter Machine Side (DCONMS) | 3.5 mm |
| Cutting Edge Material | HSSCoPM |
| Thread Tolerance Class (TCTR) | 6HX |
| Cutting Direction (HAND) | Neutral |
| Tap Standard | DIN2174 |
| Shank Type | Round w/ Drive Square |
| Thread Standard | Metric |
| Thread Size | M3 × 0.5 |
