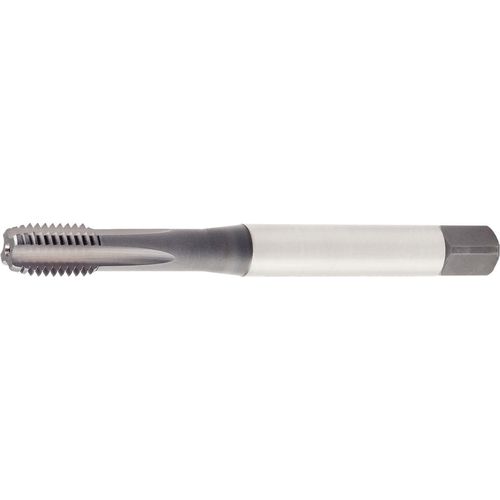

GT435005 M12X1.75 6HX STFL BOTT 376
Item #: WK344154287
Brand: Widia
Model #: 4154287
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M12 |
| Standard | DIN376 |
| Thread Pitch (TP) | 1.75 mm |
| Chamfer | 1P-2P |
| Thread Standard | Metric |
| Flute Type | Straight |
| Overall Length (OAL) | 110 mm |
| Style | Bottoming |
| Thread Cutting Part Length (THL) | 18 mm |
| Shank Type | Round w/ Drive Square |
| Connection Diameter Machine Side (DCONMS) | 9 mm |
| Cutting Direction (HAND) | Neutral |
| Flute Count (NOF) | 4 |
| Coolant Supply Property (CSP) | Coolant Thru |
| Flute Helix Angle (FHA) | 0 Degrees |
| Square Size | 7 mm |
| Cutting Edge Material | HSSCoPM |
| Measurement Type | Metric |
| Thread Tolerance Class (TCTR) | 6HX |
| Thread Size | M12 × 1.75 |
