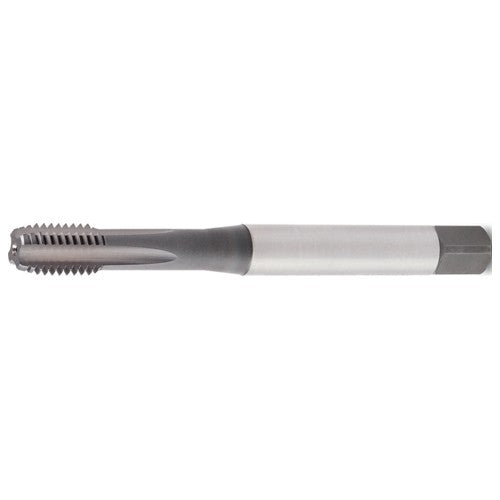

GT435004 M10X1.5 6HX STFL BOTT 371
Item #: WK344154286
Brand: Widia
Model #: 4154286
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M10 |
| Cutting Edge Material | HSSCoPM |
| Thread Pitch (TP) | 1.5 mm |
| Thread Tolerance Class (TCTR) | 6HX |
| Thread Standard | Metric |
| Standard | DIN 371 |
| Overall Length (OAL) | 100 mm |
| Chamfer | 1P-2P |
| Thread Cutting Part Length (THL) | 15 mm |
| Style | Bottoming |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Flute Count (NOF) | 4 |
| Measurement Type | Metric |
