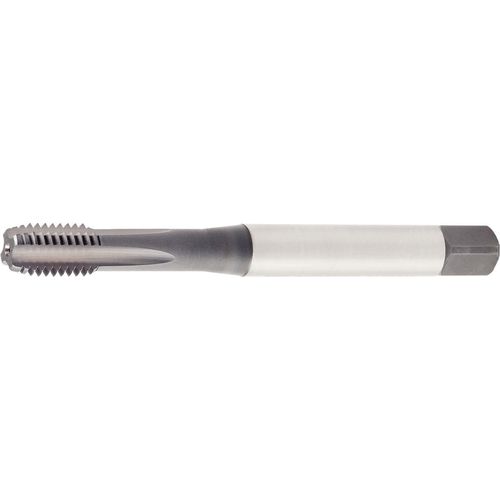

GT435002 M6X1 6HX STFL BOTT 371
Item #: WK344154284
Brand: Widia
Model #: 4154284
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M6 |
| Standard | DIN371 |
| Thread Pitch (TP) | 1 mm |
| Chamfer | 1P-2P |
| Thread Standard | Metric |
| Flute Type | Straight |
| Overall Length (OAL) | 80 mm |
| Style | Bottoming |
| Thread Cutting Part Length (THL) | 10 mm |
| Shank Type | Round w/ Drive Square |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Cutting Direction (HAND) | Neutral |
| Flute Count (NOF) | 4 |
| Coolant Supply Property (CSP) | Coolant Thru |
| Flute Helix Angle (FHA) | 0 Degrees |
| Square Size | 8 mm |
| Cutting Edge Material | HSSCoPM |
| Measurement Type | Metric |
| Thread Tolerance Class (TCTR) | 6HX |
| Thread Size | M6 × 1 |
