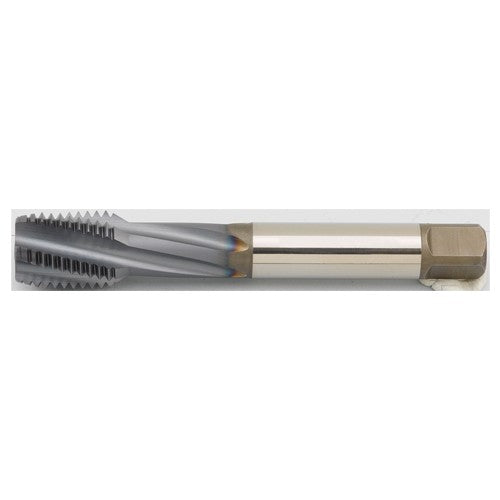

GT505001 M24X3 6HX 15RHSF SBOT 376
Item #: WK344154254
Brand: Widia
Model #: 4154254
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M24 |
| Standard | DIN 376 |
| Thread Pitch (TP) | 3 mm |
| Tool Type | Spiral Flute Tap |
| Thread Standard | Metric |
| Chamfer | 2P-3P |
| Overall Length (OAL) | 160 mm |
| Style | Semi-Bottoming |
| Thread Cutting Part Length (THL) | 30 mm |
| Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 77 mm |
| Coolant Supply Property (CSP) | External |
| Connection Diameter Machine Side (DCONMS) | 18 mm |
| Square Size | 14.5 mm |
| Flute Count (NOF) | 4 |
| Measurement Type | Metric |
| Applicable Material | Steel | Stainless Steel |
| Grade | WU32MG |
| Cutting Edge Material | HSS-E PM |
| Series/List # | GT |
| Thread Tolerance Class (TCTR) | 6HX |
