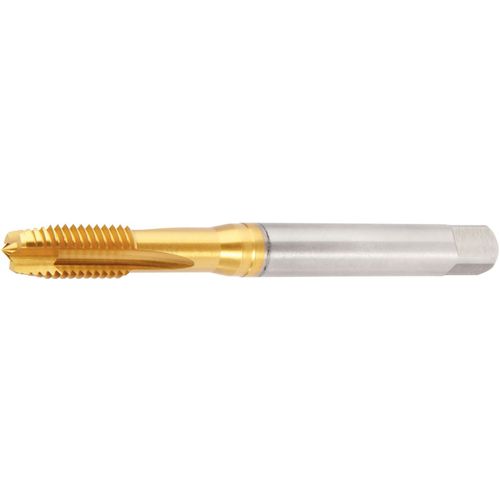

GT005002 M4X0.7 6HX SPPT PLUG 371
Item #: WK344153680
Brand: Widia
Model #: 4153680
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M4 |
| Standard | DIN371 |
| Thread Pitch (TP) | 0.7 mm |
| Chamfer | 3P-5P |
| Thread Standard | Metric |
| Flute Type | Spiral |
| Overall Length (OAL) | 63 mm |
| End Shape | Spiral Point |
| Thread Cutting Part Length (THL) | 13 mm |
| Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 4.5 mm |
| Cutting Direction (HAND) | Neutral |
| Flute Count (NOF) | 2 |
| Coolant Supply Property (CSP) | External |
| Applicable Material | Steel |
| Square Size | 3.4 mm |
| Cutting Edge Material | HSSCoPM |
| Measurement Type | Metric |
| Thread Tolerance Class (TCTR) | 6HX |
