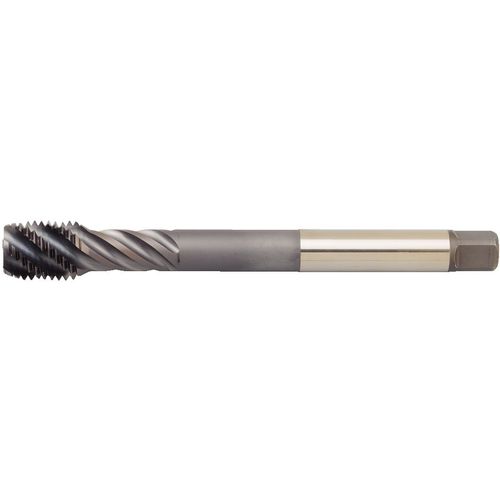

GT315019 M36X4 6H RHSF SBOT XL CH
Item #: WK344033792
Brand: Widia
Model #: 4033792
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M36 |
| Thread Tolerance Class (TCTR) | 6HX |
| Thread Pitch (TP) | 4 mm |
| Chamfer | 2P-3P |
| Thread Standard | Metric |
| Coating | TiCN |
| Overall Length (OAL) | 250 mm |
| Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 40 mm |
| Style | Semi-Bottoming |
| Connection Diameter Machine Side (DCONMS) | 28 mm |
| Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 5 |
| Coolant Supply Property (CSP) | Coolant Thru |
| Flute Helix Angle (FHA) | 45 Degrees |
| Square Size | 22 mm |
| Cutting Edge Material | HSSCoPM |
| Measurement Type | Metric |
