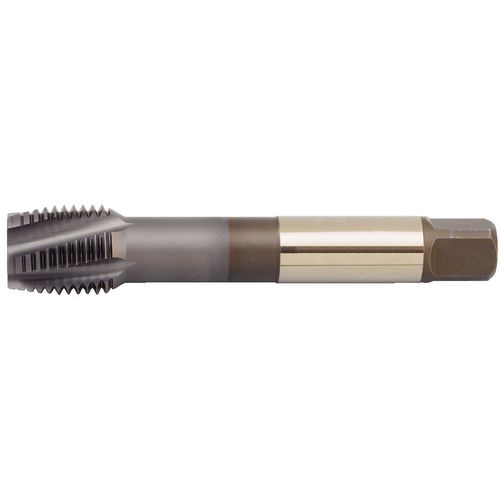

GT315004 M10X1.5 6HX RHSF 371 CH
Item #: WK343955346
Brand: Widia
Model #: 3955346
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M10 |
| Thread Tolerance Class (TCTR) | 6HX |
| Thread Pitch (TP) | 1.5 mm |
| Standard | DIN371 |
| Thread Standard | Metric |
| Chamfer | 2P-3P |
| Overall Length (OAL) | 100 mm |
| Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 15 mm |
| Style | Semi-Bottoming |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 |
| Coolant Supply Property (CSP) | Coolant Thru |
| Flute Helix Angle (FHA) | 45 Degrees |
| Square Size | 8 mm |
| Applicable Material | Stainless Steel |
| Measurement Type | Metric |
| Cutting Edge Material | HSSCoPM |
