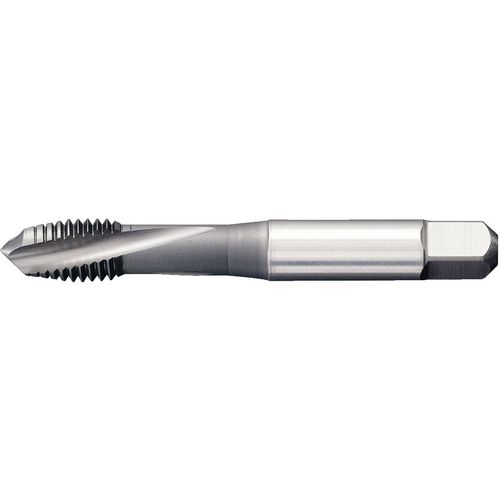

GT205020 5/8-11 3BX LH SF PLUG
Item #: WK343955292
Brand: Widia
Model #: 3955292
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 5/8″ |
| Thread Tolerance Class (TCTR) | 3BX |
| Threads per Inch (TPI) | 11 |
| Standard | ANSI |
| Thread Standard | NC |
| Chamfer | 3P-5P |
| Overall Length (OAL) | 3.81″ |
| Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 0.91″ |
| Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 0.48″ |
| Cutting Direction (HAND) | Left Hand |
| Flute Count (NOF) | 4 |
| Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 15 Degrees |
| Square Size | 0.36″ |
| Applicable Material | Stainless Steel |
| Measurement Type | Fractional |
| Cutting Edge Material | HSSCoPM |
