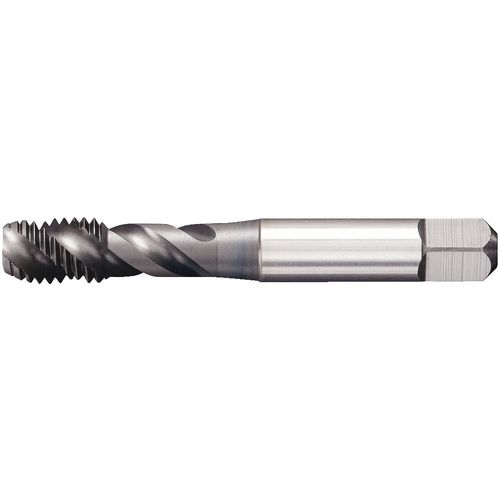

GT305025 1/4-28 3BX RHSF SBOTT
Item #: WK343955155
Brand: Widia
Model #: 3955155
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 1/4″ |
| Thread Tolerance Class (TCTR) | 3BX |
| Threads per Inch (TPI) | 28 |
| Standard | ANSI |
| Thread Standard | NF |
| Chamfer | 2P-3P |
| Overall Length (OAL) | 2-1/2″ |
| Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 0.44″ |
| Style | Semi-Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.255″ |
| Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 |
| Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 45 Degrees |
| Square Size | 0.189″ |
| Applicable Material | Stainless Steel |
| Measurement Type | Fractional |
| Cutting Edge Material | HSSCoPM |
