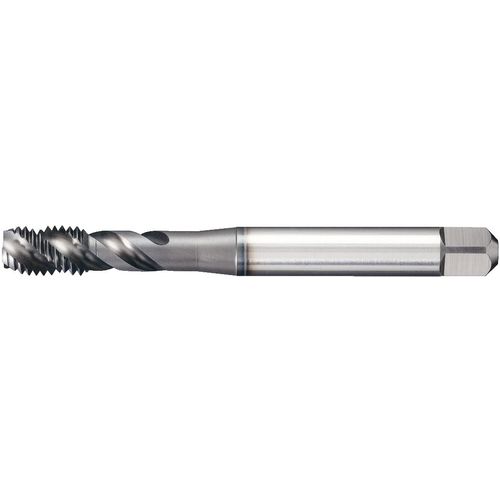

GT305080 M5X0.8 6HX RHSF SBOT 371
Item #: WK343955100
Brand: Widia
Model #: 3955100
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M5 |
| Thread Tolerance Class (TCTR) | 6HX |
| Thread Pitch (TP) | 0.8 mm |
| Standard | DIN371 |
| Thread Standard | Metric |
| Chamfer | 2P-3P |
| Overall Length (OAL) | 70 mm |
| Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 10 mm |
| Style | Semi-Bottoming |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 |
| Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 45 Degrees |
| Square Size | 4.9 mm |
| Applicable Material | Steel | Stainless Steel | Aluminum / Non-Ferrous Materials |
| Measurement Type | Metric |
| Cutting Edge Material | HSSCoPM |
