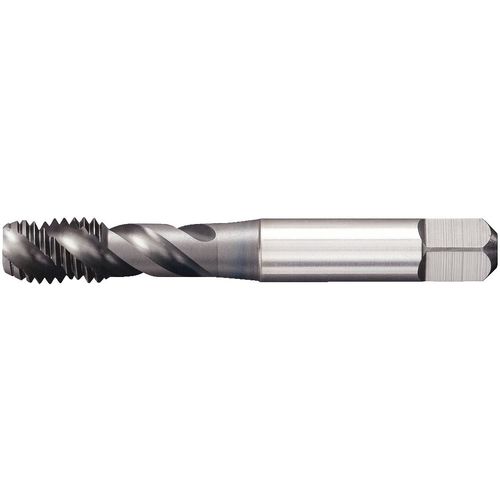

GT305075 M10X1.5 6HX RHSF SBOTT
Item #: WK343955094
Brand: Widia
Model #: 3955094
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M10 |
| Thread Tolerance Class (TCTR) | 6HX |
| Thread Pitch (TP) | 1.5 mm |
| Standard | ANSI |
| Thread Standard | Metric |
| Chamfer | 2P-3P |
| Overall Length (OAL) | 2.92″ |
| Coating | TiCN |
| Thread Cutting Part Length (THL) | 0.53″ |
| Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 0.381″ |
| Style | Semi-Bottoming |
| Flute Count (NOF) | 3 |
| Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 45 Degrees |
| Coolant Supply Property (CSP) | External |
| Applicable Material | Steel | Stainless Steel |
| Square Size | 0.284″ |
| Cutting Edge Material | HSSCoPM |
| Measurement Type | Metric |
