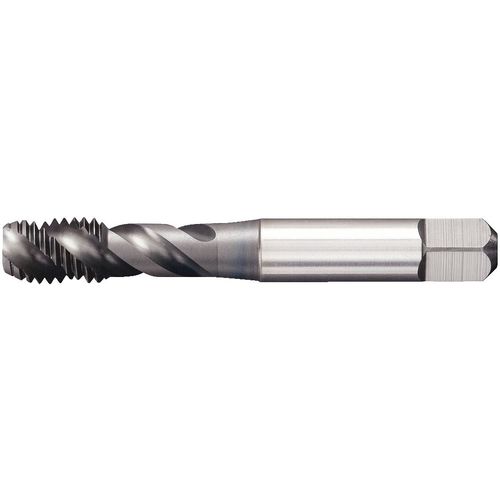

GT305062 M4X0.7 6HX RHSF SBOTT
Item #: WK343955061
Brand: Widia
Model #: 3955061
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M4 |
| Thread Tolerance Class (TCTR) | 6HX |
| Thread Pitch (TP) | 0.7 mm |
| Standard | ANSI |
| Thread Standard | Metric |
| Chamfer | 2P-3P |
| Overall Length (OAL) | 2.12″ |
| Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 0.32″ |
| Style | Semi-Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.168″ |
| Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 |
| Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 45 Degrees |
| Square Size | 0.129″ |
| Applicable Material | Stainless Steel |
| Measurement Type | Metric |
| Cutting Edge Material | HSSCoPM |
