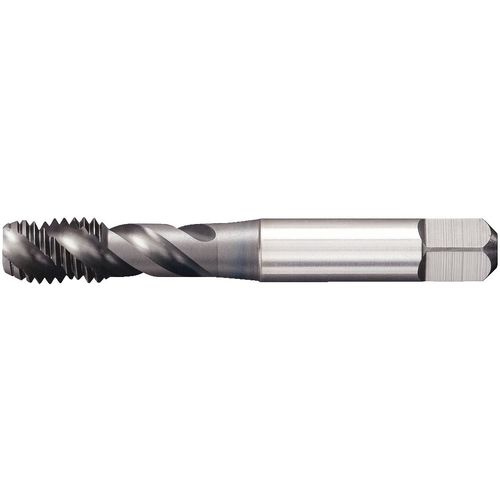

GT305061 M3X0.5 6HX RHSF SBOTT
Item #: WK343955060
Brand: Widia
Model #: 3955060
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M3 |
| Thread Tolerance Class (TCTR) | 6HX |
| Thread Pitch (TP) | 0.5 mm |
| Standard | ANSI |
| Thread Standard | Metric |
| Chamfer | 2P-3P |
| Overall Length (OAL) | 1.94″ |
| Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 0.63″ |
| Style | Semi-Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.141″ |
| Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 2 |
| Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 45 Degrees |
| Square Size | 0.108″ |
| Applicable Material | Stainless Steel |
| Measurement Type | Metric |
| Cutting Edge Material | HSSCoPM |
