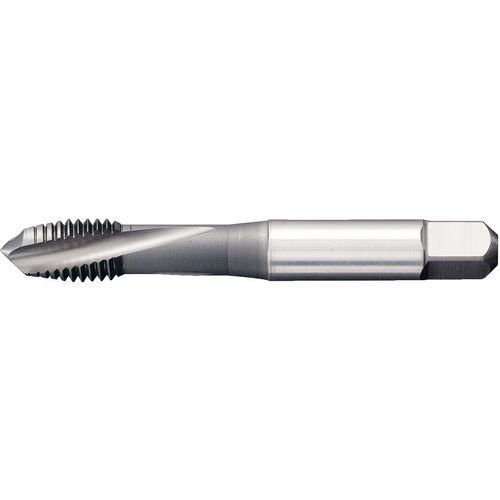

GT205074 M8X1.25 6HX LH SF PLUG
Item #: WK343955044
Brand: Widia
Model #: 3955044
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M8 |
| Thread Tolerance Class (TCTR) | 6HX |
| Thread Pitch (TP) | 1.25 mm |
| Standard | ANSI |
| Thread Standard | Metric |
| Chamfer | 3P-5P |
| Overall Length (OAL) | 690.88 mm |
| Coating | TiCN |
| Thread Cutting Part Length (THL) | 12.2 mm |
| Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 8.08 mm |
| Style | Plug |
| Flute Count (NOF) | 3 |
| Cutting Direction (HAND) | Left Hand |
| Flute Helix Angle (FHA) | 15 Degrees |
| Coolant Supply Property (CSP) | External |
| Applicable Material | Steel | Stainless Steel |
| Square Size | 5.99 mm |
| Cutting Edge Material | HSSCoPM |
| Measurement Type | Metric |
