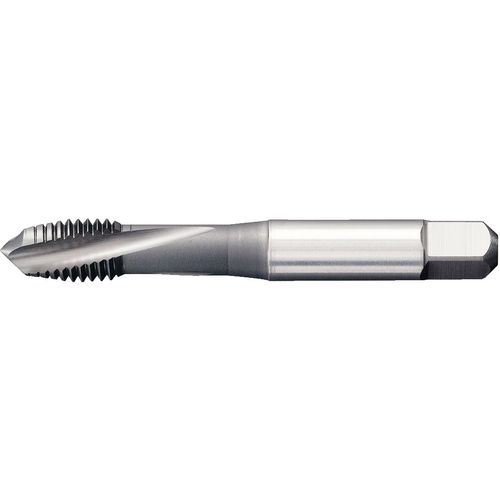

GT205068 M12X1.75 6HX LH SF PLUG
Item #: WK343955017
Brand: Widia
Model #: 3955017
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M12 |
| Thread Tolerance Class (TCTR) | 6HX |
| Thread Pitch (TP) | 1.75 mm |
| Standard | ANSI |
| Thread Standard | Metric |
| Chamfer | 3P-5P |
| Overall Length (OAL) | 85.85 mm |
| Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 19.6 mm |
| Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 9.32 mm |
| Cutting Direction (HAND) | Left Hand |
| Flute Count (NOF) | 3 |
| Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 15 Degrees |
| Square Size | 6.98 mm |
| Applicable Material | Stainless Steel |
| Measurement Type | Metric |
| Cutting Edge Material | HSSCoPM |
