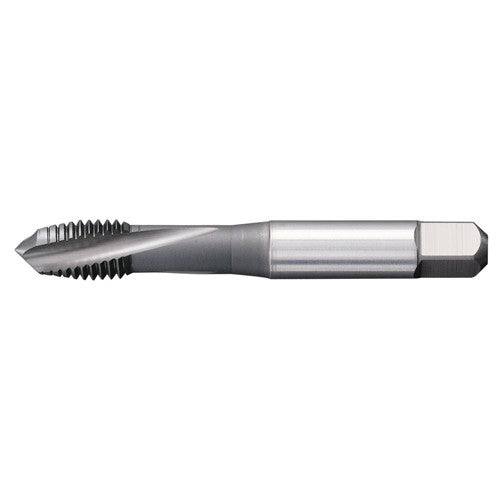

GT205054 10-32 3BX LH SF PLUG
Item #: WK343955000
Brand: Widia
Model #: 3955000
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | #10 |
| Thread Tolerance Class (TCTR) | 3BX |
| Threads per Inch (TPI) | 32 |
| Standard | ANSI |
| Thread Standard | NF |
| Chamfer | 3P-5P |
| Overall Length (OAL) | 2.38″ |
| Coating | TiCN |
| Thread Cutting Part Length (THL) | 0.47″ |
| Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 0.194″ |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 |
| Measurement Type | Machine Screw |
| Cutting Edge Material | HSSCoPM |
