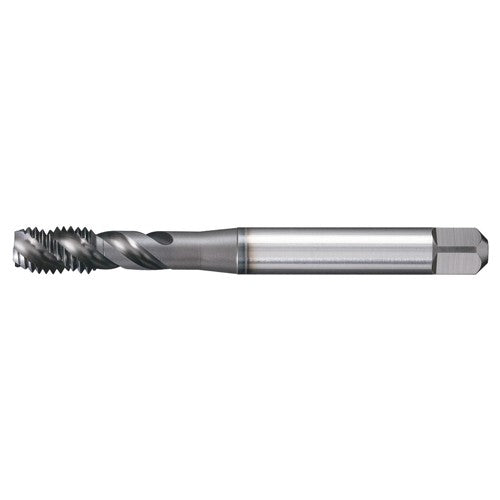

GT305098 M4X0.7 6HX RHSF SBOT 371
Item #: WK343954930
Brand: Widia
Model #: 3954930
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M4 |
| Thread Tolerance Class (TCTR) | 6HX |
| Thread Pitch (TP) | 0.7 mm |
| Standard | DIN 371 |
| Thread Standard | Metric |
| Chamfer | 2P-3P |
| Overall Length (OAL) | 63 mm |
| Coating | TiCN |
| Thread Cutting Part Length (THL) | 10 mm |
| Style | Semi-Bottoming |
| Connection Diameter Machine Side (DCONMS) | 4.5 mm |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 |
| Measurement Type | Metric |
| Cutting Edge Material | HSSCoPM |
