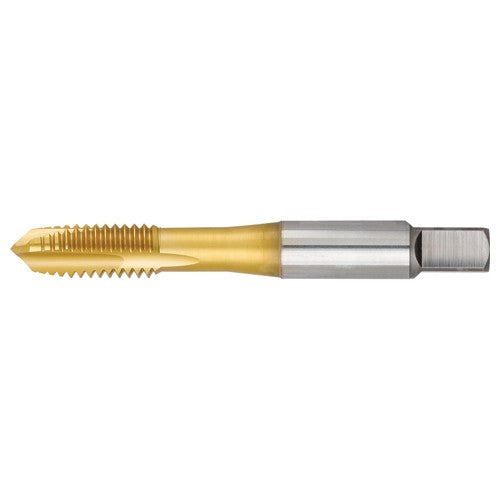

VTSPO5395 12-24 H3 3FL SP PLUGHSS-E
Item #: WK315631634
Brand: Widia
Model #: 5631634
| Product Specifications | |
|---|---|
| Thread Standard | NC |
| Standard | ANSI |
| Thread Size | #12 - 24 |
| Tool Type | High Performance Tap|Hand Tap |
| Thread Diameter Size (TDZ) | #12 |
| Connection Diameter Machine Side (DCONMS) | 0.22″ |
| Threads per Inch (TPI) | 24 |
| Thread Cutting Part Length (THL) | 1/2″ |
| Thread Tolerance Class (TCTR) | H3 |
| Flute Helix Angle (FHA) | CW |
| Overall Length (OAL) | 2.37″ |
| Style | Plug |
| Chamfer | 3P-5P |
| Cutting Direction (HAND) | Right Hand |
| Coating | Black Oxide |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 |
| Measurement Type | Wire Gauge |
| Cutting Edge Material | HSSCo |
