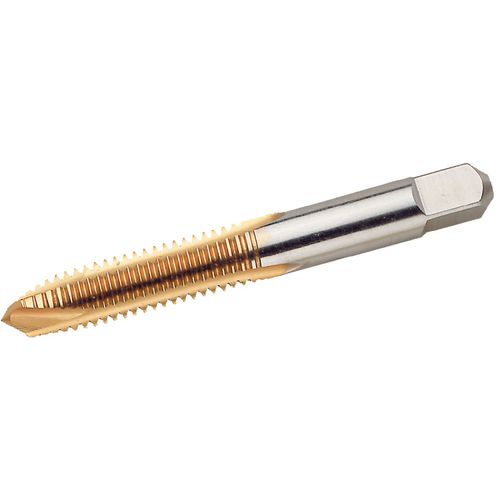

19384 2301 5/16-18NC H3 3F GUN TIN
Item #: WK303171095
Brand: Widia
Model #: 3171095
| Product Specifications | |
|---|---|
| Thread Standard | NC |
| Connection Diameter Machine Side (DCONMS) | 0.318″ |
| Thread Size | 5/16″ - 18 |
| Thread Cutting Part Length (THL) | 1-1/8″ |
| Thread Diameter Size (TDZ) | 5/16″ |
| Flute Type | Spiral |
| Threads per Inch (TPI) | 18 |
| End Shape | Spiral Point |
| Thread Tolerance Class (TCTR) | H3 |
| Style | Plug |
| Overall Length (OAL) | 2-23/32″ |
| Shank Type | Round w/ Drive Square |
| Chamfer | 3P-5P |
| Cutting Direction (HAND) | Right Hand |
| Coating | TiN |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 |
| Measurement Type | Fractional |
