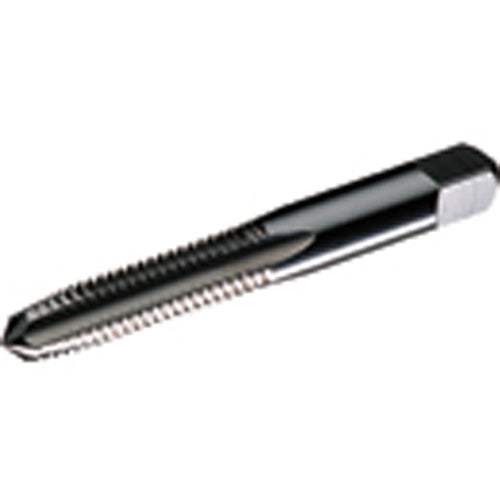

14148 5303 3/8-16 NC H1 BOT TAP
Item #: WK302749656
Brand: Widia
Model #: 2749656
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 3/8″ |
| Tool Type | Hand Tap |
| Threads per Inch (TPI) | 16 |
| Chamfer | 1P-2P |
| Thread Standard | NC |
| Coating | Uncoated |
| Overall Length (OAL) | 2-15/16″ |
| Style | Bottoming |
| Thread Cutting Part Length (THL) | 1-1/4″ |
| Shank Type | Round w/ Drive Square |
| Connection Diameter Machine Side (DCONMS) | 0.381″ |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 |
| Square Size | 0.286″ |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Aluminum / Non-Ferrous Materials |
| Measurement Type | Fractional |
| Cutting Edge Material | HSS |
| Thread Size | 3/8″ - 16 |
| Thread Tolerance Class (TCTR) | H1 |
