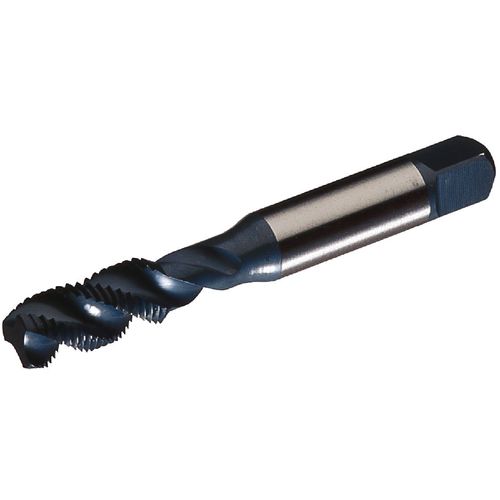

16538 3/4-10 HS G H3 4F BOT HVY DTY
Item #: WK302747995
Brand: Widia
Model #: 2747995
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 3/4″ |
| Thread Tolerance Class (TCTR) | H3 |
| Threads per Inch (TPI) | 10 |
| Chamfer | 1P-2P |
| Thread Standard | NC |
| Coating | Oxide |
| Overall Length (OAL) | 4-1/4″ |
| Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 1.22″ |
| Style | Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.59″ |
| Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 |
| Coolant Supply Property (CSP) | External |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials |
| Measurement Type | Fractional |
