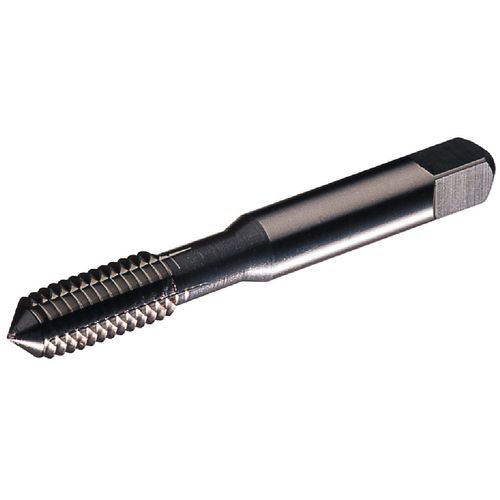

17249 5502 5/16-18NC H7 BOT TAP
Item #: WK302747547
Brand: Widia
Model #: 2747547
| Product Specifications | |
|---|---|
| Tool Type | Forming Tap |
| Coolant Supply Property (CSP) | External |
| Thread Diameter Size (TDZ) | 5/16″ |
| Threads per Inch (TPI) | 18 |
| Overall Length (OAL) | 2.72″ |
| Chamfer | 1P-2P |
| Thread Cutting Part Length (THL) | 11/16″ |
| Measurement Type | Fractional |
| Connection Diameter Machine Side (DCONMS) | 0.318″ |
| Style | Bottoming |
| Thread Tolerance Class (TCTR) | H7 |
| Cutting Direction (HAND) | Neutral |
| Thread Standard | NC |
| Shank Type | Round w/ Drive Square |
| Applicable Material | Non-Ferrous Metals|Stainless Steel|Steel |
| Thread Size | 5/16″ - 18 |
| Coating | Uncoated |
