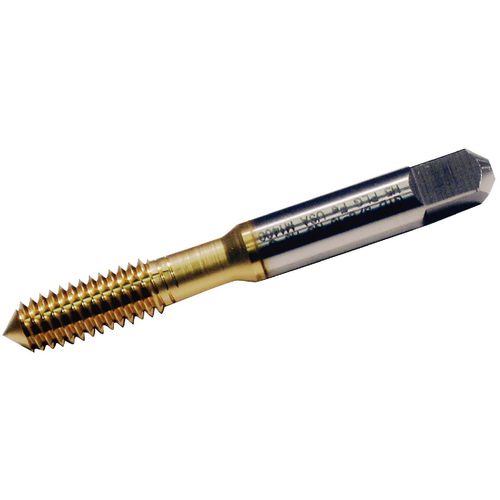

18257 M5X0.8 HS G D7 BOTT FE TAP
Item #: WK302747367
Brand: Widia
Model #: 2747367
| Product Specifications | |
|---|---|
| Tool Type | Forming Tap |
| Coating | Uncoated |
| Thread Diameter Size (TDZ) | M5 |
| Coolant Supply Property (CSP) | External |
| Thread Pitch (TP) | 0.8 mm |
| Chamfer | 1P-2P |
| Overall Length (OAL) | 60.45 mm |
| Measurement Type | Metric |
| Thread Cutting Part Length (THL) | 12.7 mm |
| Style | Bottoming |
| Connection Diameter Machine Side (DCONMS) | 4.93 mm |
| Cutting Direction (HAND) | Neutral |
| Thread Tolerance Class (TCTR) | D7 |
| Shank Type | Round w/ Drive Square |
| Thread Standard | Metric |
| Thread Size | M5 × 0.8 |
