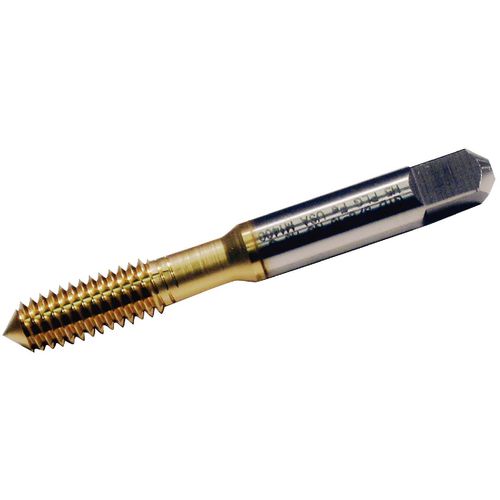

18355 5912 M4X0.7 D6 FE BOTT TIN
Item #: WK302747246
Brand: Widia
Model #: 2747246
| Product Specifications | |
|---|---|
| Tool Type | Forming Tap |
| Coating | TiN |
| Thread Diameter Size (TDZ) | M4 |
| Coolant Supply Property (CSP) | External |
| Thread Pitch (TP) | 0.7 mm |
| Chamfer | 1P-2P |
| Overall Length (OAL) | 2.13″ |
| Measurement Type | Metric |
| Thread Cutting Part Length (THL) | 3/8″ |
| Style | Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.168″ |
| Cutting Direction (HAND) | Neutral |
| Thread Tolerance Class (TCTR) | D6 |
| Shank Type | Round w/ Drive Square |
| Thread Standard | Metric |
| Thread Size | M4 × 0.7 |
| Applicable Material | Non-Ferrous Metals|Stainless Steel|Steel |
