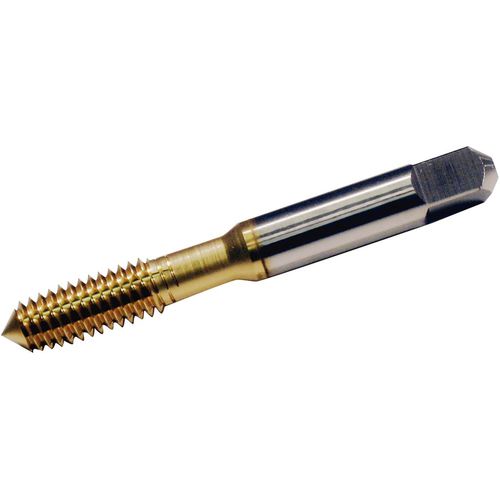

18745 5900 3/8-16NC H5 FE PLUG TICN
Item #: WK302747141
Brand: Widia
Model #: 2747141
| Product Specifications | |
|---|---|
| Tool Type | Forming Tap |
| Coolant Supply Property (CSP) | External |
| Thread Diameter Size (TDZ) | 3/8″ |
| Threads per Inch (TPI) | 16 |
| Overall Length (OAL) | 2.94″ |
| Chamfer | 3P-5P |
| Thread Cutting Part Length (THL) | 3/4″ |
| Measurement Type | Fractional |
| Connection Diameter Machine Side (DCONMS) | 0.381″ |
| Style | Plug |
| Thread Tolerance Class (TCTR) | H5 |
| Cutting Direction (HAND) | Neutral |
| Thread Standard | NC |
| Shank Type | Round w/ Drive Square |
| Applicable Material | Non-Ferrous Metals|Stainless Steel|Steel |
| Thread Size | 3/8″ - 16 |
| Coating | TiCN |
