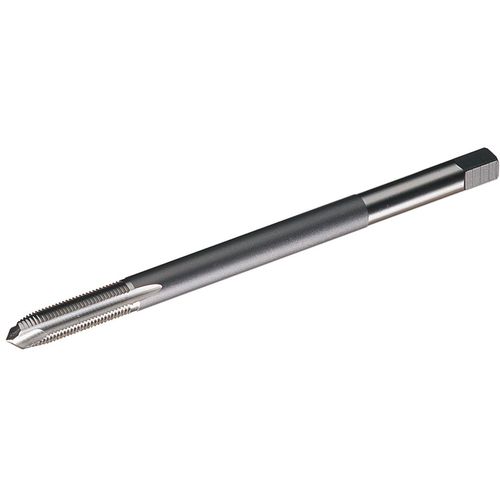

18941 3/8-24HS G H3 3F PL SPPT 6IN
Item #: WK302747018
Brand: Widia
Model #: 2747018
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 3/8″ |
| Thread Tolerance Class (TCTR) | H3 |
| Threads per Inch (TPI) | 24 |
| Chamfer | 3P-5P |
| Thread Standard | NF |
| Coating | Uncoated |
| Overall Length (OAL) | 6″ |
| Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 1-1/4″ |
| End Shape | Spiral Point |
| Connection Diameter Machine Side (DCONMS) | 0.381″ |
| Style | Plug |
| Flute Count (NOF) | 3 |
| Coolant Supply Property (CSP) | External |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Aluminum / Non-Ferrous Materials |
| Square Size | 0.286″ |
| Cutting Edge Material | HSS |
| Measurement Type | Fractional |
