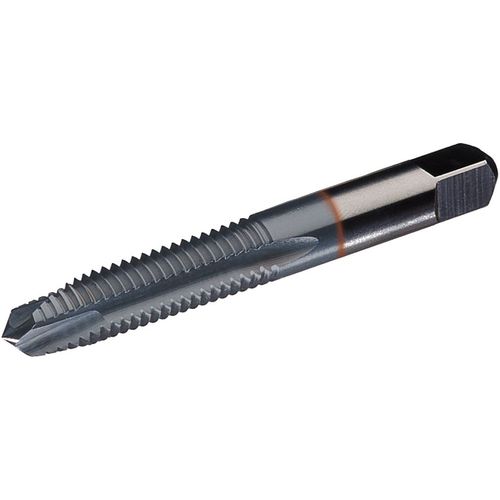

19014 5301TC 5-40NC H2 GUN TAP TICN
Item #: WK302746986
Brand: Widia
Model #: 2746986
| Product Specifications | |
|---|---|
| Thread Standard | NC |
| Applicable Material | Steel | Stainless Steel | Cast Iron |
| Thread Size | #5 - 40 |
| Connection Diameter Machine Side (DCONMS) | 0.141″ |
| Thread Diameter Size (TDZ) | #5 |
| Thread Cutting Part Length (THL) | 5/8″ |
| Threads per Inch (TPI) | 40 |
| Flute Type | Spiral |
| Thread Tolerance Class (TCTR) | H2 |
| End Shape | Spiral Point |
| Overall Length (OAL) | 1-15/16″ |
| Style | Plug |
| Chamfer | 3P-5P |
| Shank Type | Round w/ Drive Square |
| Coating | TiCN |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 2 |
| Square Size | 0.11″ |
| Cutting Edge Material | HSS |
| Measurement Type | Wire Gauge |
