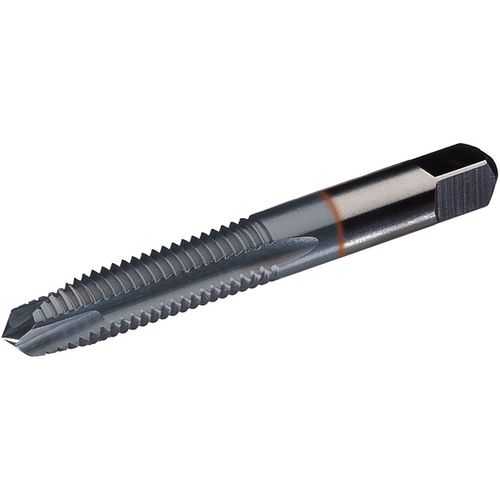

19024 5301TC 7/16-14NC H3 GUN TAP
Item #: WK302746966
Brand: Widia
Model #: 2746966
| Product Specifications | |
|---|---|
| Thread Standard | NC |
| Applicable Material | Steel | Stainless Steel | Cast Iron |
| Thread Size | 7/16″ - 14 |
| Connection Diameter Machine Side (DCONMS) | 0.323″ |
| Thread Diameter Size (TDZ) | 7/16″ |
| Thread Cutting Part Length (THL) | 1-7/16″ |
| Threads per Inch (TPI) | 14 |
| Flute Type | Spiral |
| Thread Tolerance Class (TCTR) | H3 |
| End Shape | Spiral Point |
| Overall Length (OAL) | 3-5/32″ |
| Style | Plug |
| Chamfer | 3P-5P |
| Shank Type | Round w/ Drive Square |
| Coating | TiCN |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 |
| Square Size | 0.242″ |
| Cutting Edge Material | HSS |
| Measurement Type | Fractional |
