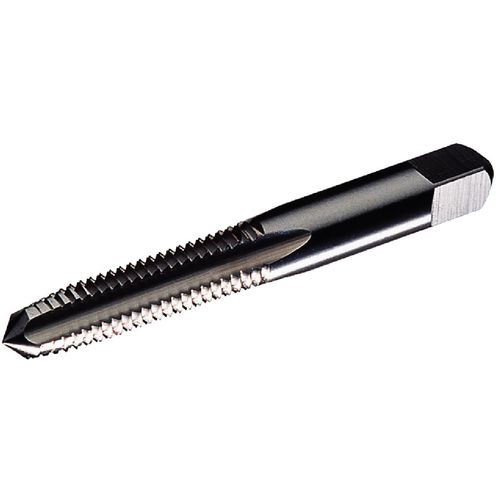

19135 5303TC 7/16-14 GH3 4F PLUG
Item #: WK302746818
Brand: Widia
Model #: 2746818
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 7/16″ |
| Tool Type | Hand Tap |
| Threads per Inch (TPI) | 14 |
| Chamfer | 3P-5P |
| Thread Standard | NC |
| Coating | TiCN |
| Overall Length (OAL) | 3-5/32″ |
| Style | Plug |
| Thread Cutting Part Length (THL) | 1-7/16″ |
| Shank Type | Round w/ Drive Square |
| Connection Diameter Machine Side (DCONMS) | 0.323″ |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 |
| Square Size | 0.242″ |
| Applicable Material | Steel | Stainless Steel | Cast Iron |
| Measurement Type | Fractional |
| Cutting Edge Material | HSS |
| Thread Size | 7/16″ - 14 |
| Thread Tolerance Class (TCTR) | H3 |
