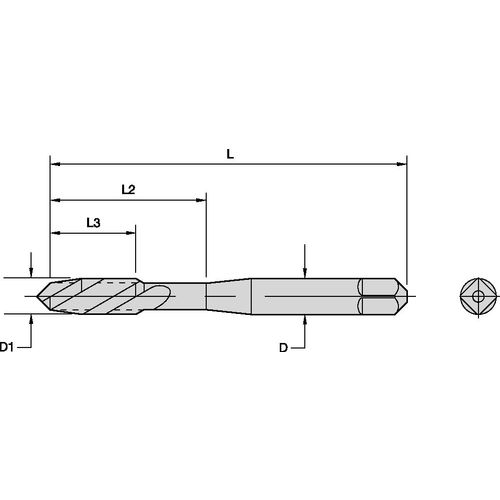

19927 M3X0.5 HS G D3 2F PLUG FS TAP
Item #: WK302746264
Brand: Widia
Model #: 2746264
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M3 |
| Thread Tolerance Class (TCTR) | D3 |
| Thread Pitch (TP) | 0.5 mm |
| Chamfer | 3P-5P |
| Thread Standard | Metric |
| Coating | TiN |
| Overall Length (OAL) | 1.94″ |
| Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 0.31″ |
| Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 0.141″ |
| Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 2 |
| Coolant Supply Property (CSP) | External |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials |
| Measurement Type | Metric |
