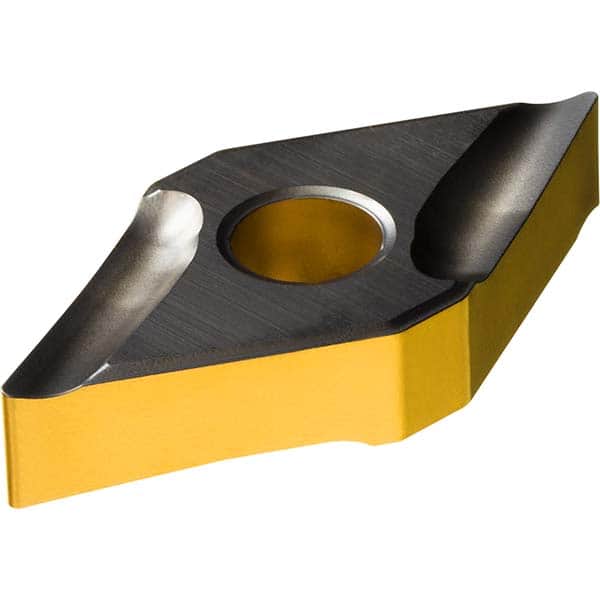

Sandvik Coromant - Turning Inserts Insert Style: DNMG Insert Size: 1506
Item #: 19107838
Brand: Sandvik Coromant
Model #: 7859192
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics, and other tough-to-machine materials.
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Product Specifications
Turning Inserts; Insert Style: DNMG ; Insert Size: 1506 ; Material: Carbide ; Inscribed Circle (mm): 12.7 ; Inscribed Circle (Decimal Inch): 0.5 ; Thickness (Decimal Inch): 0.25
| Insert Style | DNMG |
| Insert Size | 1506 |
| Material | Carbide |
| Inscribed Circle (mm) | 12.7 |
| Inscribed Circle (Decimal Inch) | 0.5 |
| Thickness (Decimal Inch) | 0.25 |
| Thickness (mm) | 6.35 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | 4415 |
| Coating | TiCN+Al2O3+TiN |
| Chip Breaker | K |
| ISO Number | DNMG 15 06 04L-K 4415 |
| Relief Angle | 0 |
| Coating Process | CVD |
| Manufacturers Catalog Number | DNMG 441L-K 4415 |
| Primary Workpiece Material | K |
| Secondary Workpiece Material | P |
| Cutting Direction | Left |
| Insert Hand | Left Hand |
| Material | Carbide |
| Cutting Direction | Left |
| Corner Radius (mm) | 0.4 |
| Coating Process | CVD |
| Coating | TiCN+Al2O3+TiN |
| Inscribed Circle (mm) | 12.7 |
| Inscribed Circle (Decimal Inch) | 0.5 |
| Material | Carbide |
| Manufacturer's Grade | 4415 |
| Insert Style | DNMG |
| Insert Size | 1506 |
| Thickness (mm) | 6.35 |
| Thickness (Decimal Inch) | 0.25 |
| Shape | Diamond 55 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Coating Process | CVD |
| Coating | TiCN+Al2O3+TiN |
| Corner Radius (mm) | 0.4 |
| Thickness (Decimal Inch) | 0.25 |
| Material | Carbide |
| Manufacturer's Grade | 4415 |
| Insert Style | DNMG |
| Insert Size | 1506 |
| Series | T-Max P |
| Cutting Direction | Left |
| Series | T-Max P |
| Insert Hand | Left Hand |
| Series | T-Max P |
| Insert Holding Method | Screw/Clamp |
| Shape | Diamond 55 |
