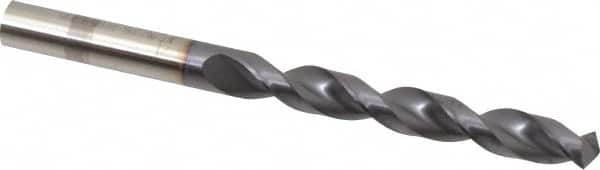

Guhring - 27/64" 130° Powdered Metal Jobber Drill
Item #: 60319845
Brand: Guhring
Model #: 9005300107200
Features and Benefits
Powdered Metal (PM) is tougher and more cost effective than solid carbide. It is commonly used on highly abrasive materials including high silicon aluminums.
FIREX is a multi-layer coating that combines the characteristics of universal applicability of TiN, the heat resistance of TiAlN and the shock resistance of TiCN. FIREX is a proprietary coating exclusive to Guhring, Inc.
Parabolic flutes are constructed with a wider flute shape for increased chip flow.
| Product Specifications | |
|---|---|
| Drill Bit Size (Inch) | 27/64 |
| Drill Bit Size (Decimal Inch) | 0.4200 |
| Drill Point Angle | 130 |
| Drill Bit Material | Powdered Metal |
| Drill Bit Finish/Coating | FIREX |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (mm) | 87.00 |
| Overall Length (mm) | 133.00 |
| Point Type | Cone Relief |
| Shank Diameter (Inch) | 27/64 |
| Specification Designation | DIN |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (mm) | -0.027 to 0.000 |
| Web Thinning | Web-Thinned |
| Specification Number | DIN 338 |
| Drill Bit Grade | High Performance |
| Material Grade | PM-ASP-60 |
| Series/List | 530 |
