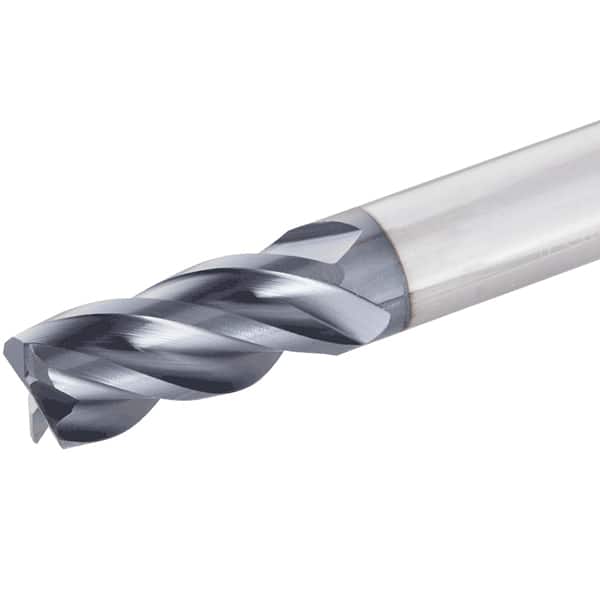

Iscar - Roughing & Finishing End Mills Mill Diameter (Inch): 0.5 Mill Diameter (Decimal Inch): 0.5000
Item #: 15110992
Brand: Iscar
Model #: 3338805
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastic and other tough-to-machine materials.
Titanium Aluminum Nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN. As a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications.
Center Cutting tools have one or more cutting edges at the tip and are used in a variety of applications including plunging, drilling or ramping.
Product Specifications
Roughing & Finishing End Mills; Mill Diameter (Inch): 0.5 ; Mill Diameter (Decimal Inch): 0.5000 ; End Type: Corner Radius ; Corner Radius (Decimal Inch): 0.1200 ; Corner Radius (mm): 3.00 ; Number of Flutes: 4
| Mill Diameter (Inch) | 0.5 |
| Mill Diameter (Decimal Inch) | 0.5000 |
| End Type | Corner Radius |
| Corner Radius (Decimal Inch) | 0.1200 |
| Corner Radius (mm) | 3.00 |
| Number of Flutes | 4 |
| Material | Solid Carbide |
| Finish/Coating | TiAlN |
| Length of Cut (Inch) | 1 |
| Length of Cut (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 0.5 |
| Overall Length (Inch) | 3 |
| Centercutting | Center Cutting |
| Extended Reach | NonExtendedReach |
| Chipbreaker | No |
| Shank Type | Safe-Lock |
| Helix Angle | 35; 37 |
| Single or Double End | Single |
| Length Type | Regular |
