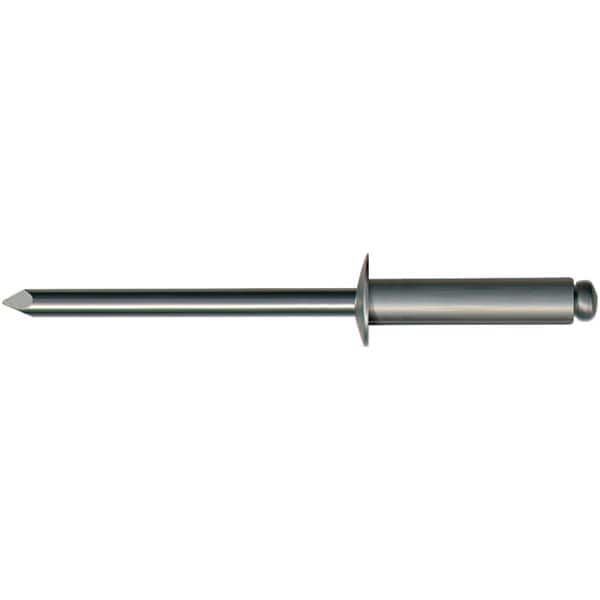

Marson - Blind Rivets Type: Open End Head Type: Button
Item #: 10332757
Brand: Marson
Model #: M70334
Features and Benefits
Open end rivets are used when disassembly is difficult or not required.
Button head fasteners have cylindrical heads with curved tops and flat bearing surfaces. They slightly protrude out of the workpiece and are used for aesthetic purposes.
Aluminum has a high strength-to-weight ratio and is wear resistant, nonmagnetic and conductive. It is easier to form and machine than steel and is naturally noncorrosive.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
Product Specifications
Blind Rivets; Type: Open End ; Head Type: Button ; Size Code: 53 ; Rivet Material: Aluminum ; Mandrel Material: Steel ; Minimum Grip (Decimal Inch): 0.1260
| Type | Open End |
| Head Type | Button |
| Size Code | 53 |
| Rivet Material | Aluminum |
| Mandrel Material | Steel |
| Minimum Grip (Decimal Inch) | 0.1260 |
| Maximum Grip (Decimal Inch) | 0.1870 |
| Head Diameter (Decimal Inch) | 0.3120 |
| Minimum Hole Diameter (Decimal Inch) | 0.1600 |
| Maximum Hole Diameter (Decimal Inch) | 0.1640 |
| Rivet Material Grade | 5052 |
| Mandrel Material Grade | Carbon Steel |
| Color | Silver |
| Head Height (Decimal Inch) | 0.0500 |
