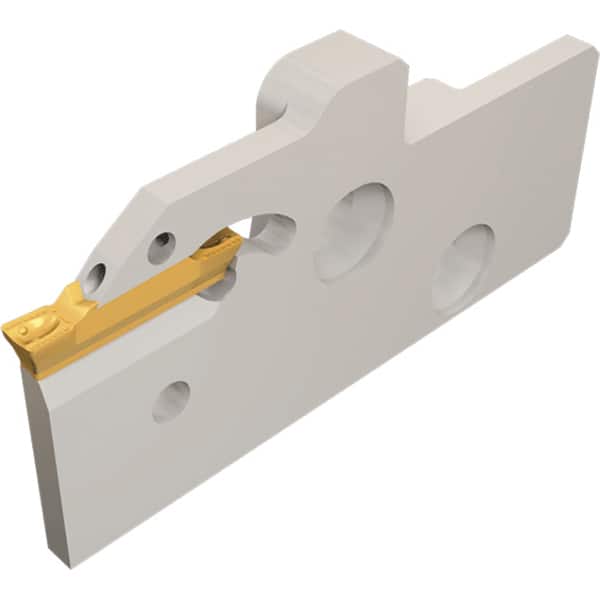

Iscar - Indexable Cut-Off Blades Single or Double End: Single Cutting Direction: Right or Left Hand
Item #: 15110018
Brand: Iscar
Model #: 3342951
Product Specifications
Indexable Cut-Off Blades; Single or Double End: Single ; Cutting Direction: Right or Left Hand ; Blade Height (mm): 18.90 ; Blade Height (Decimal Inch): 0.7440 ; Blade Width (mm): 1.60 ; Blade Width (Decimal Inch): 0.0629
| Single or Double End | Single |
| Cutting Direction | Right or Left Hand |
| Blade Height (mm) | 18.90 |
| Blade Height (Decimal Inch) | 0.7440 |
| Blade Width (mm) | 1.60 |
| Blade Width (Decimal Inch) | 0.0629 |
| Blade Overall Length (mm) | 54.35 |
| Blade Overall Length (Decimal Inch) | 2.1397 |
| Blade Style | HGAD |
| Insert Style | DGN |
| Insert Width (Decimal Inch) | 0.0750 to 0.0980 |
| Series | DO GRIP |
| Insert Holding Method | Screw |
| Maximum Workpiece Diameter (Decimal Inch) | 1.4960 |
| Maximum Workpiece Diameter (mm) | 38 |
| Cutting Height (mm) | 18.90 |
| Cutting Height (Decimal Inch) | 0.7440 |
| Minimum Insert Width (mm) | 1.90 |
| Minimum Insert Width (Decimal Inch) | 0.0748 |
| Maximum Insert Width (mm) | 2.50 |
| Maximum Insert Width (Decimal Inch) | 0.0984 |
