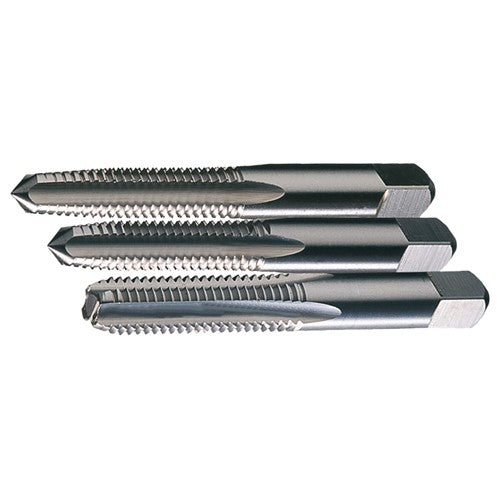

M3x0.5 3 Flute D3 Taper-Plug-Bottoming HSS Standard Straight Flute 3-Piece Hand Tap Set- TiN
Item #: VT10343504
Brand: Greenfield Threading
Model #: 343504
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M3 |
| Connection Diameter Machine Side (DCONMS) | 3.58 mm |
| Pitch in mm | 0.5 mm |
| Flute Count (NOF) | 3 |
| Flute Type | Straight |
| Cutting Edge Material | HSS |
| Thread Tolerance Class (TCTR) | D3 |
| Quantity | 3 |
| Style | Taper|Plug|Bottoming |
| Application | General Purpose |
| Tool Type | Tap | Hand Taps |
| Measurement Type | Metric |
| Shank Type | Round w/ Drive Square |
| Series/List # | HTGP-3PC-TN |
| Flute Length | 15.9 mm |
| Thread Cutting Part Length (THL) | 7.87 mm |
| Cutting Direction (HAND) | Right Hand |
| Thread Pitch (TP) | 0.5 mm |
| Coating | TiN |
| Thread Size | M3 × 0.5 |
| Overall Length (OAL) | 49.28 mm |
