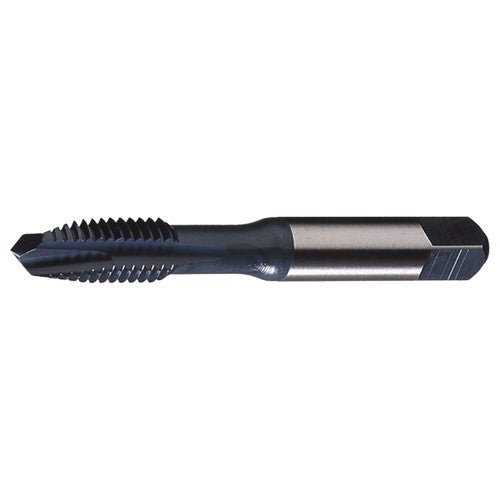

#4-40 UNC 2 Flute H2 Plug HSS-E CNC For Soft Metals Spiral Point Tap- Steam Oxide
Item #: VT10330302
Brand: Greenfield Threading
Model #: 330302
| Product Specifications | |
|---|---|
| Thread Standard | NC |
| Application | High Performance |
| Thread Size | #4 - 40 |
| Connection Diameter Machine Side (DCONMS) | 0.141″ |
| Thread Diameter Size (TDZ) | #4 |
| Thread Cutting Part Length (THL) | 5/16″ |
| Threads per Inch (TPI) | 40 |
| Flute Type | Straight |
| Thread Tolerance Class (TCTR) | H2 | 2B |
| End Shape | Square |
| Overall Length (OAL) | 1-7/8″ |
| Style | Plug |
| Chamfer | Plug |
| Shank Type | Round w/ Drive Square |
| Coating | Steam Oxide |
| Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 2 |
| Length Group | 2D |
| Cutting Edge Material | HSS-E |
| Measurement Type | Wire Gauge |
| Tool Type | Machine Tap |
| Series/List # | SPS |
| Applicable Material | Steel | Stainless Steel |
