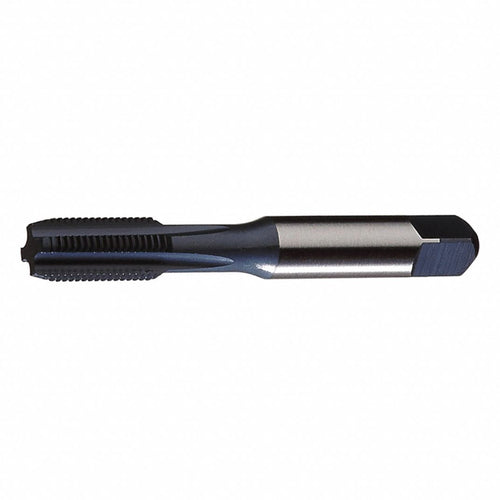

M10x1.5 4 Flute D6 Semi-Bottoming HSS-E CNC For Cast Iron & Harder Materials CNC Straight Flute Tap- Steam Oxide over Nitride
Item #: VT10330294
Brand: Greenfield Threading
Model #: 330294
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M10 |
| Chamfer | Semi-Bottoming |
| Thread Pitch (TP) | 1.5 mm |
| Coating | Steam Oxide Over Nitride |
| Overall Length (OAL) | 74.61 mm |
| Flute Type | Straight |
| Thread Cutting Part Length (THL) | 19.05 mm |
| End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 9.68 mm |
| Style | Semi-Bottoming |
| Flute Count (NOF) | 4 |
| Shank Type | Round w/ Drive Square |
| Application | High Performance |
| Cutting Direction (HAND) | Right Hand |
| Applicable Material | Cast Iron | Hard Materials |
| Length Group | 2D |
| Cutting Edge Material | HSS-E |
| Measurement Type | Metric |
| Thread Tolerance Class (TCTR) | D6 | 6H |
| Series/List # | HTHM |
| Tool Type | Machine Tap |
| Thread Size | M10 × 1.5 |
