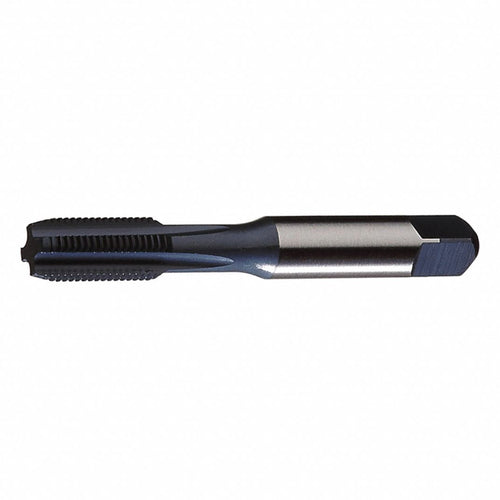

#10-32 UNF 4 Flute H3 Semi-Bottoming HSS-E CNC For Cast Iron & Harder Materials CNC Straight Flute Tap- Steam Oxide over Nitride
Item #: VT10330260
Brand: Greenfield Threading
Model #: 330260
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | #10 |
| Chamfer | Semi-Bottoming |
| Threads per Inch (TPI) | 32 |
| Coating | Steam Oxide Over Nitride |
| Thread Standard | NF |
| Flute Type | Straight |
| Overall Length (OAL) | 2-3/8″ |
| End Shape | Square |
| Thread Cutting Part Length (THL) | 1/2″ |
| Style | Semi-Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.194″ |
| Shank Type | Round w/ Drive Square |
| Flute Count (NOF) | 4 |
| Cutting Direction (HAND) | Right Hand |
| Application | High Performance |
| Length Group | 2D |
| Applicable Material | Cast Iron | Hard Materials |
| Measurement Type | Wire Gauge |
| Cutting Edge Material | HSS-E |
| Series/List # | HTHM |
| Thread Tolerance Class (TCTR) | H3 | 2B |
| Thread Size | #10 - 32 |
| Tool Type | Machine Tap |
