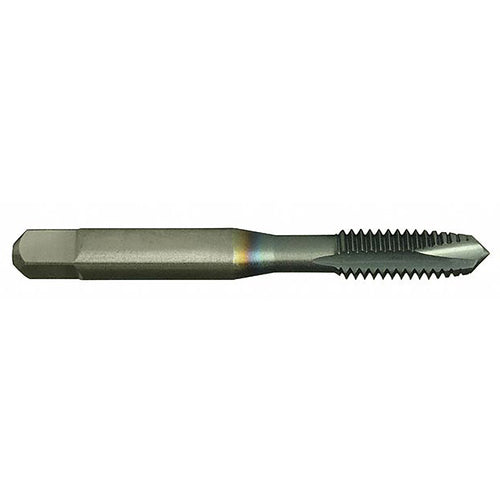

#5-40 UNC 2 Flute H2 Plug HSS Standard Spiral Point Tap- Steam Oxide
Item #: VT10330103
Brand: Greenfield Threading
Model #: 330103
| Product Specifications | |
|---|---|
| Thread Standard | NC |
| Application | General Purpose |
| Thread Size | #5 - 40 |
| Connection Diameter Machine Side (DCONMS) | 0.141″ |
| Thread Diameter Size (TDZ) | #5 |
| Thread Cutting Part Length (THL) | 5/8″ |
| Threads per Inch (TPI) | 40 |
| Flute Type | Straight |
| Thread Tolerance Class (TCTR) | H2 | 2B |
| End Shape | Square |
| Overall Length (OAL) | 1-15/16″ |
| Style | Plug |
| Chamfer | Plug |
| Shank Type | Round w/ Drive Square |
| Coating | Steam Oxide |
| Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 2 |
| Length Group | 2D |
| Cutting Edge Material | HSS |
| Measurement Type | Wire Gauge |
| Tool Type | Machine Tap |
| Series/List # | SPGP-SO |
| Applicable Material | Steel | Aluminum / Non-Ferrous Materials |
