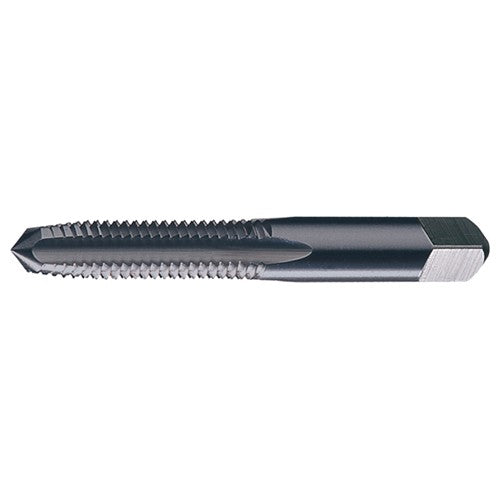

#8-32 UNC 4 Flute H3 Plug HSS Standard Straight Flute Hand Tap- TiCN
Item #: VT10330040
Brand: Greenfield Threading
Model #: 330040
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | #8 |
| Chamfer | Plug |
| Threads per Inch (TPI) | 32 |
| Coating | TiCN |
| Thread Standard | NC |
| Flute Type | Straight |
| Overall Length (OAL) | 2-1/8″ |
| End Shape | Square |
| Thread Cutting Part Length (THL) | 3/4″ |
| Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 0.168″ |
| Shank Type | Round w/ Drive Square |
| Flute Count (NOF) | 4 |
| Cutting Direction (HAND) | Right Hand |
| Application | General Purpose |
| Length Group | 2D |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Aluminum / Non-Ferrous Materials |
| Measurement Type | Wire Gauge |
| Cutting Edge Material | HSS |
| Series/List # | HTGP-TC |
| Thread Tolerance Class (TCTR) | H3 | 2B |
| Thread Size | #8 - 32 |
| Tool Type | Hand Tap |
